EPEVER CC-USB-RS485-150U Cable USB to RS-485 PC for MPPT Solar Charge Controller. Parallels desktop mac download free. RS485 to USB Communication Line Use For eSmart and Wiser MPPT Solar Controller. USB to UART convertor cables have RS485 level UART signals plus offer you a quick and simple path connecting to an RS485 interface to USB. The USB connection has a built-in, small circuit board, featuring the FT323RQ UART interface IC handling all the USB signalling and protocols. EZSync FTDI Chip usb to RS485 Cable with TX/RX LEDs, Wire End, 1.5m, USB-RS485-WE compatible, EZSync010. 4.4 out of 5 stars 32. Get it as soon as Mon. USB-RS485-WE-1800-BT FTDI USB Cables / IEEE 1394 Cables USB to RS485 Embeded Conv Wire End 1.8m datasheet, inventory & pricing.

Model No:YT-USB-RS485-WE

Usb-rs485-we-5000-btUsb-rs485-we-5000-bt

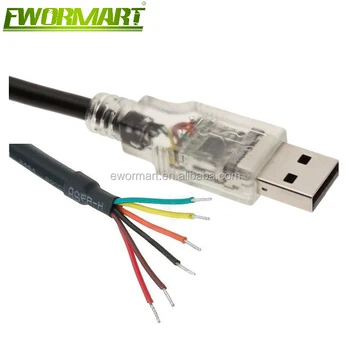

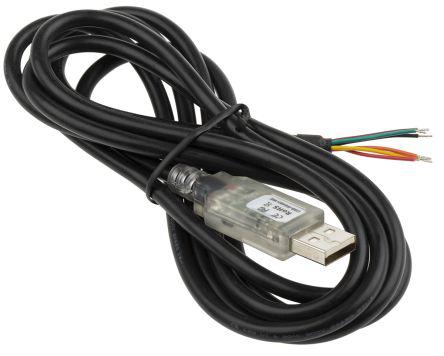

USB RS485 Wire End Cable

Model No:YT-USB-RS485-WE

Usb-rs485-we-1800-bt driver

Product Description:
This Utech USB-RS485 cables are USB to RS485 levels serial converters. The cables include FTDI’s FT232RL USB to serial UART interface IC device, which handles all the USB signalling, and protocols, plus an appropriate transceiver. The cable provides a fast, simple method to connect equipment with an RS485 interface to USB.

*USB-RS485 converter cable provides a USB to RS485 serial interface with customised end connectors.
*Entire USB protocol handled by the electronics in the cable.
*EIA/TIA-485 communication interface with low power requirements.
*UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
*Internal EEPROM with user writeable area.
*FTDI‟s royalty-free VCP allow for communication as a standard emulated COM port and D2XX „direct‟ drivers provide DLL application programming interface.
*Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
*X-On / X-Off software handshaking.
*Data transfer rates from 300 baud to 3 Mbaud.
*Support for FT232R FTDIChip-ID™ feature for improved security.
*Low USB bandwidth consumption.
*UHCI / OHCI / EHCI host controller compatible.
*USB 2.0 Full Speed compatible.
*-40°C to +85°C operating temperature range.
*Cable length is 1.80m (6 feet).
*ESD Protection for RS-485 I/O’s
±15kV Human Body Model (HBM)
±15kV EN61000-4-2 Air Gap Discharge
±8kV EN61000-4-2 Contact Discharge
*Custom versions available on request (subject to MOQ).
*RoHS Compliant

Usb Rs422 We 1800 Bt

1.USB-RS485 converter cable provides a USB to RS485 serial interface with customised end connectors.
2.Entire USB to RS485 translation protocol handled by the electronics over-molded in the cable.
3.Overmolded FT232R chipset provides single chip USB to asynchronous serial data transfer interface. Works with all Windows and Mac OS versions.
4.UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
5.Internal EEPROM with user writeable area.
6.Data transfer rates from 300 baud to 3 Mbaud.
7.Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
8.Extended temperature range (-40°C to +85°C).
9.Electronics available as separate PCB.
